Formula R.1 Kit

Presenting the MWX Performance R.1 Formula 1 1/28 2WD Chassis Kit!



The MWX Performance R.1 1/28 2WD Formula 1 Chassis Kit is a revolutionary kit designed to dominate micro 2wd class racing. After years of adding innovation to other micro kits, MWX decided it was time to release their own kit incorporating cutting edge technology with high quality components and features. This has been a passion project of MWX for many years. This is our second kit release in the first year of operations!



You will appreciate the details designed in to maximize adjustability as well as add extra durability and precision that these very unique cars require.

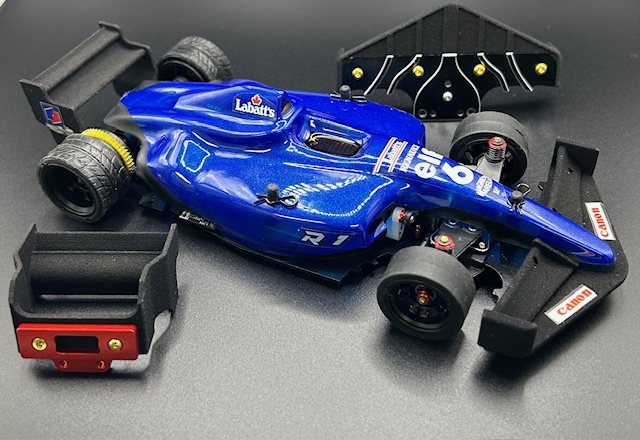

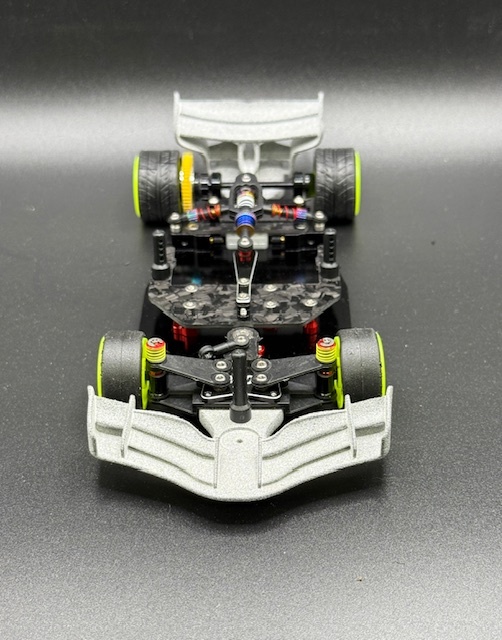

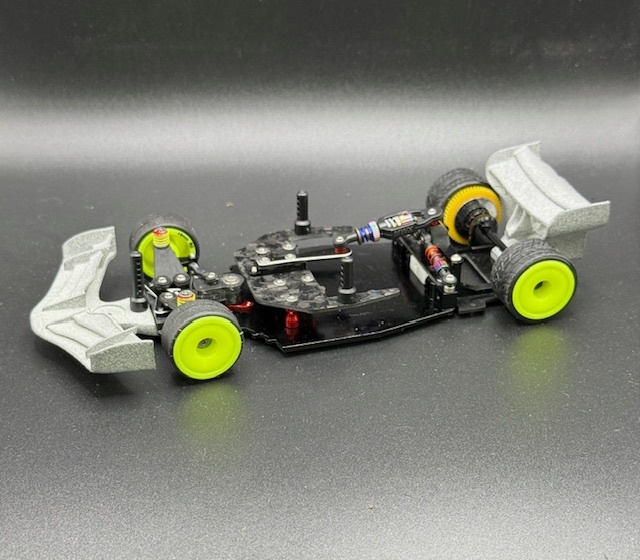

NOTE: Rolling chassis shown in photos is for illustrative purposes only and shows items that are not included. See needed to complete list below for a full list of items required to complete the model.

Features:

• Unique no side link design
• Durable injection moulded front end
• Ultra-low CG design from the ground up
• Includes optional shock springs in the box
• Extremely free rear end for an ultra-smooth rear suspension
• Ability to use dynamic caster
• Includes coated shock shafts & kingpins for unmatched durability & smoothness
• Quick change Ackerman adjustment to change steering characteristics
• Includes 0-1 degree caster Plate
• Precise and direct slop-free steering assembly
• Includes MWX Slipper differential
• Low slop design
• Low roll center front suspension

WORLDS KIT INCLUDES THE FOLLOWING:

TPU SERVO SAVER

FRONT ZS SPRINGS

CENTER OPTION SPRINGS

SIDE OPTION SPRINGS

V2.0 WINGSET

V2.0 LEXAN BODY

RIDE HEIGHT SHIMS



Kit does NOT include wheels,tires

or electronics



MSRP 449.00



CLICK THE BOTTON BELOW FOR BUILD INSTRUCTIONS:

BUILD NOTES:

STEERING LINK LENGTH IS 25.0-25.1 MEASURED OUTSIDE TO OUTSIDE

SERVO LINK USES A SHORT BALL CUP AND A LONG BALL CUP(EXTRA INCLUDED)

SERVO HORN NEEDS TO BE THE LONGER PLASTIC ONE AND DRILL THE HOLE OUT TO 1.5MM

CENTER SHOCK SPRINGS ARE WHITE DROOP AND PURPLE FOR COMPRESSION

FRONT GREASE IS MARKA 5K

SIDE AND CENTER GREASE IS 1UP PINK
